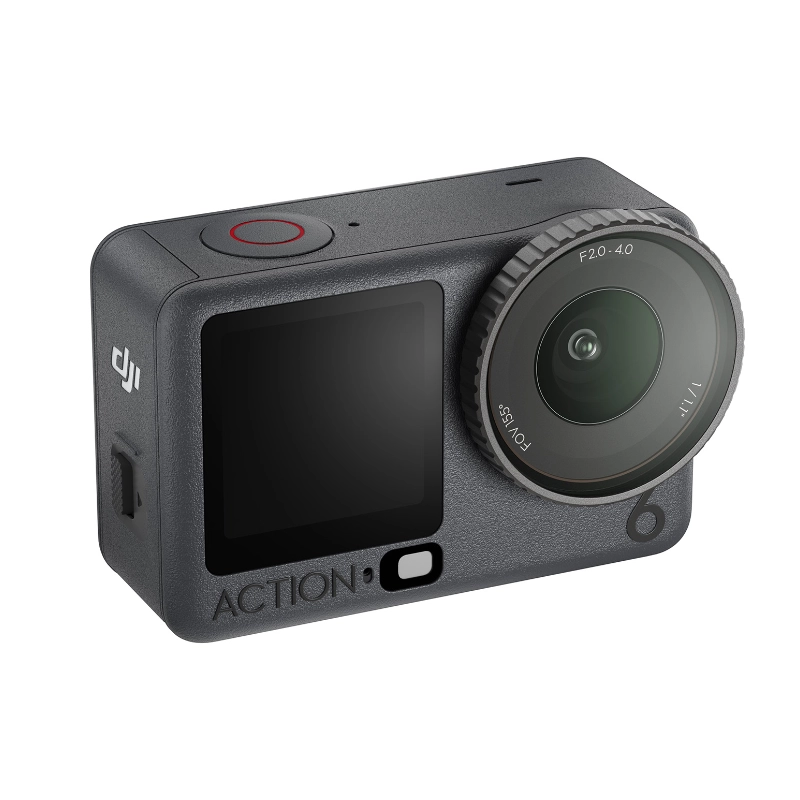

DJI Osmo Action 6

General Specs

• Dimensions (L×W×H): 70.5×44.2×32.8 mm

• Weight: 145 g

• Waterproof: 16m without Waterproof Case, 60 m with Waterproof Case

• Number of Microphones: 3

• Touchscreens

Front Screen: 1.4-inch 326 ppi 320×320
Rear Screen: 2.25-inch 326 ppi 360×640
Front/Rear Screen Brightness: 750±50 cd/m²

• Supported SD Cards: microSD (up to 256 GB)

• Recommended microSD Cards

Recommended models:
SanDisk Extreme 32GB V30 A2 UHS-I Speed Grade 3
SanDisk Extreme Pro 32GB V30 A2 UHS-I Speed Grade 3
Kingston Canvas Go!Plus 64GB/128 UHS-I Speed Grade 3
Kingston Canvas React Plus 64GB/128/256 UHS-II Speed Grade 3

Camera

• Sensor: 1/1.7-inch CMOS

• Lens

FOV: 155°
Aperture: f/2.8
Focus Range: 0.3 m to ∞

• ISO Range

Photo: 100-12800
Video: 100-12800

• Electronic Shutter Speed

Photo: 1/8000-30 s
Video: 1/8000 s to the limit of frames per second

• Max Photo Resolution: 4000×3000

• Zoom

Digital Zoom
Photo: 4x
Video: 2x (> 60fps), 3x (≤ 60fps, HorizonSteady On), 4x (≤ 60fps, HorizonSteady Off)
Slow Motion/Timelapse: Not available

• Still Photography Modes

Single: 12 MP
Countdown: Off/0.5/1/2/3/5/10 s

• Standard Recording

4K (4:3): 4096×3072@24/25/30/48/50/60fps
(16:9): 3840×2160@100/120fps
(16:9): 3840×2160@24/25/30/48/50/60fps
2.7K (4:3): 2688×2016@24/25/30/48/50/60fps
(16:9): 2688×1512@100/120fps
(16:9): 2688×1512@24/25/30/48/50/60fps
1080p (16:9): 1920×1080@100/120/200/240fps
1080p (16:9): 1920×1080@24/25/30/48/50/60fps

• Slow Motion

4K: 4x (120fps)
2.7K: 4x (120fps)
1080p: 8x (240fps), 4x (120fps)

• Hyperlapse

4K/2.7K/1080p: Auto/×2/×5/×10/×15/×30

• Timelapse

4K/2.7K/1080p@30fps
Intervals: 0.5/1/2/3/4/5/6/7/8/10/13/15/20/25/30/40 s
Duration: 5/10/20/30 mins, 1/2/3/5 hours, ∞

• HDR Recording

4K (16:9): 3840×2160@24/25/30fps
2.7K (16:9): 2688×1512@24/25/30fps
1080p: 1920×1080@24/25/30fps

• Stabilization

EIS:
RockSteady 3.0
RockSteady+
HorizonBalancing
HorizonSteady

• Max Video Bitrate: 130 Mbps

• Supported File System: exFAT

• Photo Format: JPEG/RAW

• Video Format: MP4 (H.264/HEVC)

• Built-in Storage Capacity

The camera does not have built-in storage, but storage capacity can be expanded by inserting a microSD card.

• Audio Output: 48 kHz; AAC

• Type: LiPo 1S

• Capacity: 1770mAh

• Energy: 6.8 Wh

• Voltage: 3.85 V

• Operating Temperature: -20° to 45° C (-4° to 113° F)

• Charging Temperature: 5° to 40° C (41° to 104° F)

• Operating Time: 160 mins

• Wi-Fi Operating Frequency

2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz

• Wi-Fi Protocol: 802.11 a/b/g/n/ac

• Wi-Fi Transmission Power (EIRP)

2.4 GHz: < 16 dBm (FCC/CE/SRRC/MIC)
5.1 GHz: < 14 dBm (FCC/CE/SRRC/MIC)
5.8 GHz: < 14 dBm (FCC/CE/SRRC)

• Bluetooth Operating Frequency: 2.400-2.4835 GHz

• Bluetooth Transmission Power (EIRP): < 4 dBm

• Bluetooth Protocol: BLE 5.0
